New Equipment

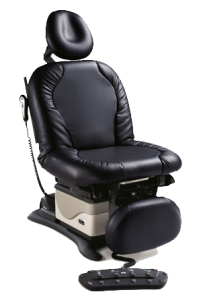

Barrier-Free® Power Procedures Table

General Overview

Proper positioning is crucial to providing the accessibility and flexibility you need at the point of care to create a truly “procedure-friendly” office. Power height, back, foot and tilt gives the Midmark 630 virtually endless movement capabilities, allowing you to position patients correctly for the most effective procedure. And, adjustable height allows you to work in a position that is comfortable to you.

• Power height, back, foot and tilt
• 450-pound patient weight capacity
• 19″ to 40″ seat height adjustment (non-rotation models)
• 22.5″ to 43.5″ seat height adjustment (rotation models)
• Hand and foot control standard

Specification

Patient Load Rating: 450 lb. (204 kg)

Stirrups are standard

Height:
Minimum 19″ (48.3 cm)
Maximum 40″ (101.6 cm)
Seat Tilt Angle Range: 0° to 30°
Back Support Angle Range: 0° to 85°
Foot Support Angle Range: 0° to 90°
Upholstery Width Dimensions:
Headrest: 12″ (30.5 cm)
Back support: 24″-26″ (61-66 cm)
Seat: 28″ (71.1 cm)
Foot support: 18″ (45.7 cm)
Patient Support Surface Length: Flat position: 72″ (182.9 cm)
Flat position with headrest extended: 83″ (210.8 cm)
Paper Roll Holder: Holds 18″ x 3.5″ paper roll (45.7 x 8.9 cm)
Optional Electrical Outlet Rating: 115 VAC, 3 Amps

Electrical Ratings
115 VAC, 10 Amps, 50/60 Hz (for standard models)
115/230 VAC, 7.5/3.8 Amps, 50/60 Hz (for rotation models)
115 VAC, 7 Amps, 50/60 Hz (for heated top models)

Safety Standards
UL 60601-1 and CAN/CSA C22.2
No. 601.1-M90

Automatic Sterilizer

General Overview

Today, more than ever, you need reliable, easy to use products from a trusted partner who understands your needs. The Midmark M9 UltraClave® is specifically designed to meet those needs. The intuitive display and simple prompts help you to easily select the cycle you need…whether it is for unwrapped items, pouches, packs or handpieces. Once the sterilization process is complete, the automatic-opening door quietly opens to dissipate steam, providing fast and efficient instrument drying. Simply load it, set it and forget it!

• Midmark sterilizers are the market-leaders, providing unsurpassed reliability, effectiveness and convenience.
• The Steam-Flush Pressure-Pulse Air Removal System is so efficient it can pass the air removal tests required on more complex vacuum steam sterilizer systems
• Pre-programmed controls and easy to view LCD display
• Convenient self-program controls provide instrument processing flexibility
• Automatic-opening door ensures fast instrument drying
• Front fill and drain tube provide easy access for maintenance and water level monitoring

Specification

Overall length w/plug: 20.4″ (51.8 cm)
Overall width: 15.3″ (38.9 cm)
Overall height w/printer: 15.8″ (40.1 cm)
Minimum Countertop area:
15.3″ x 17.9″ (38.9 cm x 45.4 cm)
Chamber:
9″ diameter (22.9 cm) 15″ depth (38.1 cm) 3.5 gal. usable volume (13.4 liters)
Trays:
Two large –­ 7.3″ W x 12″ L x .8″ D (18.6 cm x 30.5 cm x 2.2 cm) Two small – 5.6″ W x 12″ L x .8″ D (14.3 cm x 30.5 cm x 2.2 cm) Unit weight: 73 lbs. (33.1 kg) Shipping weight: 81 lbs. (36.7 kg) Water reservoir capacity: 1.1 gal. (4.1 liters)
Electrical Requirements
115 VAC, 50/60 Hz, 15 Amps Single Phase 115 VAC has 1425 watt tubular immersion heater Safety Standards

UL61010-1, UL61010-2-040 CAN/CSA C22.2 No. 61010-1 CSA C22.2 No. 61010-2-040-07 Part 2-040 Meets the requirements of ASME Boiler and Pressure Vessel Code Canadian registration number available A separate (dedicated) circuit is recommended for this sterilizer

SCHILLER CARDIOVIT AT

General Overview

The CARDIOVIT AT-1 performs quick and accurate
12-lead ECG analysis, in a three channel format,
at a price for one-channel systems.
With its compact, easy-to-use operation and builtin
battery, the AT-1 is perfect for all applications including stationary office use, hospital bedsides and ambulatory field work. Reliable, powerful and low-maintenance, the AT-1 is the ideal costeffective ECG unit for professional electrocardiography.

Over 60’000 units have been sold worldwide!

3-channel Resting ECG

• Simultaneous 12-lead acquisition
• 3-channel print format
• One-button operation
• Multiple report formats
• Copy functions
• Various recording rates
• Automatic and manual modes
• Built-in thermal printer
• Built-in, rechargeable battery
• Built-in charger unit
• Lightweight (2,9 kg/6.7 lbs)

Specification

System:

Dimensions: 290 x 210 x 69 mm / 11.4 x 8.3 x 2.7 in. (l/w/h)
Weight: Ca. 2.9 kg / approx. 6.7 lbs
Power supply requirements: 220 – 240 V (nominal), 50/60 Hz or 110 – 115 V
(nominal), 50/60 Hz independent operation with built-in rechargeable

battery, LED indicator for mains and battery, built-in charger unit

Power consumption: Max. 28 VA
Battery charging time: 15 hrs. from a completely discharged battery, 3 hrs. to 60 {1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2} capacity
Battery capacity: 2 hrs of normal use
Leads: Standard / Cabrera
Patient input circuitry: Fully floating and isolated, defibrillation protected

(only with original SCHILLER patient cable)

Frequency range of digital recorder: 0 Hz to > 150 Hz (IEC/AHA)
ECG amplifier:

– Simultaneous, synchronous registration of all 9 active electrode signals (= 12 standard leads)
– Sampling frequency: 1000 Hz
– Pacemaker detection: ≥ ± 2 mV/ ≥ ± 0.1 ms

SCHILLER CARDIOVIT AT-2

General Overview

The AT-2 is a low cost ECG system with performance features previously only available in high priced systems. Using the latest design and manufacturing technology, the AT-2 provides A4 reports within seconds at the touch of a button. Optional is an automatic measurement and interpretation program as well as a trolley.

• Full-size A4 reports to fit patient charts
• Powerful battery, which lasts for 400 recordings or 6 hours continuous use
• Built-in thermal printer
• Up to 20 different printout formats
• Realtime printout of 6 channels with 5, 10, 25 oder 50 mm/s
• Various recording rates
• Simultaneous 12 lead ECG acquisition
• Printouts in less than 20 seconds for immediate analysis
• Auto printout of all 12 channels on 1 or 2 pages
• Copy function for unlimited number of copies
• AC/DC power supply with built-in rechargeable battery, built-in charger unit

• Portable – weighs only 4.8 kg
• labelled
• Meets or exceeds U.S. and international quality standards

Specification

Dimensions: 400 x 330 x 101 mm, approx. 4.8 kg
Power supply requirements: 220 – 240 V (nominal), 50/60 Hz or 100 – 115 V

(nominal), 50/60 Hz independent operation with built-in rechargeable battery,

LED indication for mains and battery, built-in charger unit
Power consumption: Max. 28 VA
Battery charging time: 15 hrs. from a completely discharged battery, 3 hrs. to 60 {1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2} capacity
Battery capacity: 6 hrs. of normal use or 400 automatic ECG printouts
Frequency range of digital recorder: 0 Hz – 150 Hz (IEC/AHA)
Patient input circuitry: Fully floating and isolated, defibrillation protected

(only with original SCHILLER patient cable)

Control panel and keyboard: User-friendly key pad, LED indicators

LED indicators:

– Lead group
– Mains connected
– Battery operation and low battery (indicator flashes)
– Paper tray empty or jammed
– Filter status (on/off)
– Loose electrodes

General Overview

The CARDIOVIT AT-2 plus offers ECG and
spirometry all in one product.
This innovative device can be used for quick
and easy initial clarification, for routine
examinations of affected patients, and to
monitor the progress of therapy. This “double
winner” scores high, due to its low purchasing
costs, its economic operation and
the possibility of “double” reimboursement
(for ECG as well as spirometry).

World-Renowned ECG technology

• 6-channel print-out in realtime at 5, 25 or 50 mm/s
• Automatic print-out function for 6 and 12 channels on one or two sides of the paper
• Fast, reliable, computer-aided ECG interpretation program including complete measurement for adult and pediatric ECGs (optional).

Specification

System:

Dimensions: 400 x 330 x 101 mm; approximately 5 kg

Built-in monitor:

– 120 x 90 mm effective display area
– 320 x 240 dots resolution

On-screen status indicators:

– Battery status
– Date, time
– Power source

Control panel and keyboard:

User-friendly, alphanumeric keyboard, LED indicator and monitor
Power supply requirements: 220 – 240 V (nominal),
50/60 Hz; 110 – 115V (nominal), 50/60 Hz; stand-alone operation
with built-in rechargeable battery. LED indicator for mains
operation, integrated power supply unit.
Battery capacity: Up to 3 hours of normal use

Centrifuge Drucker 614B

General Overview

The Model 614B is a low-cost, fixed-angle centrifuge designed for the doctor’s office or small lab. Its compact design minimizes its footprint, leaving more

room on your counter and is a single speed centrifuge designed for blood separations.

Specification

Maximum Capacity……………………. 90mL (6x15mL)
Overall Height……………………. 8.5 in. (22 cm)
Dimensions……………………. Width: 11 in. (28 cm)
Depth……………………. 12.5 in. (32 cm)
Weight……………………. 18.5 lbs. (8.4 kg
Centrifuge Motor……………………. 1/30 H.P. AC
Protection Breaker……………………. 4 Amp. Re–settable
Timer……………………. Mechanical, 1 to 30 minutes +/- 10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}
Max……………………. Power Requirements: 120 Watts
Voltage……………………. 115 (+/- 10) Volts
Frequency……………………. 60 Hz
Nominal Speed……………………. 3,150 (+/- 100) RPM
Nominal Force……………………. 1,200 (+/- 60) xg
Acceleration Time……………………. 60 seconds
Deceleration Time……………………. 60 seconds

Centrifuge Drucker 642B

General Overview

The Horizon mini-B, model 642B, is a single-speed centrifuge designed for the doctor’s office or small lab. Its compact design minimizes its footprint, leaving more room on your counter. The unique horizontal rotor design allows for the test tubes to be inserted into the centrifuge at a convenient 45 degree angle. They are then gently rotated to a full horizontal position as the motor accelerates.

Specification

Nominal Speed……………………. 3,380 (+/- 100) RPM
Nominal Force……………………. 1,600 (+/- 90) xg
Max Acceleration Time……………………. 15 seconds
Deceleration Time……………………. 60 seconds
Maximum Capacity……………………. 60mL (6x10mL)
Overall Height……………………. 8.5 in. (22 cm)
Dimensions: Width……………………. 11 in. (28 cm)
Depth……………………. 12.5 in. (32 cm)
Weight……………………. 18.5 lbs. (8.4 kg)
Centrifuge Motor……………………. 1/30 H.P. AC
Protection Breaker……………………. 4 Amp. Re–settable

Timer: Mechanical, 1 to 30 minutes +/- 10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}
Max. Pwr. Requirements: 165 Watts
Voltage: 115 (+/- 10) Volts
Frequency: 60 Hz

Centrifuge Drucker 642E

General Overview

The Model 642E is a compact single-speed centrifuge designed to provide the ideal pre-analytic sample processing performance recommended by all collection tube manufacturers. Using patented rotor technology, the 642E reduces blood separation processing times by 33{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2} while minimizing use of valuable counter space for the doctor’s office or lab. The performance of the 642E reduces patient redraws by keeping your patient samples cool during processing, providing a high quality and stable gel layer, and by maximizing sample integrity; it’s no wonder the 642E is the world’s best selling clinical laboratory centrifuge

Specification

Electrical

Voltage…………………………….. 115 (± 10) Volts
Frequency………………………………………… 60 Hz
Max. Power Requirements………………….. 165 Watts
Protection Breaker…………………………….. 4 Amp. Re–settable
Centrifuge Motor……………………………….. 1/30 H.P. Brushless AC

General

Overall Dimensions……….. Height…………. 8.75 in. (22 cm)
Width………….. 11.75 in. (30 cm)
Depth………….. 14 in. (35.5 cm)
Weight…………………………………………….. 13.75 lbs. (6.4 kg)
Max. Acceleration Time………………………. 10 seconds
Max. Deceleration Time………………………. 20 seconds
Timer………………………………………………. Electronic, 1 to 30 minutes, preset to 10 minutes

Speed………………………………………………… 3,380 (± 100) RPM
Force…………………………………………………. 1,600 (± 90) x g

Centrifuge Drucker 642VFD-Plus

General Overview

The Horizon, model 642VFD-PLUS, is a dual-speed centrifuge designed for the doctor’s office or small lab that can benefit from

two separate set speeds. Its compact design minimizes its footprint, leaving more room on your counter. The unique horizontal

rotor design allows for the test tubes to be inserted into the centrifuge at a convenient 45 degree angle. They are then gently

rotated to a full horizontal position as the motor accelerates.

Specification

Control panel lights inform the operator of the machine’s current status

MODEL 642VFD-PLUS

Nominal Speed (RUN 1):……………… 3,800 (+/- 100) RPM
Nominal RCF (RUN 1):…………………. 2,000 (+/- 100) xg
Nominal Speed (RUN 2):……………… 1,800 (+/- 100) RPM
Nominal RCF (RUN 2):…………………. 450 (+/- 50) xg
Maximum capacity (Horizontal):….. 60 mL (6 x 10 mL)
Overall Dimensions (H x W x D):…… 9.0 in. x 11 in. x 12.5 in…. (22 cm x 28 cm x 32 cm)

Centrifuge Motor:………………. 1/30 HP, p.s.c. motor
Nominal Acceleration Time:………… 10 seconds
Protection Breaker:…………………….. 4 Amp. re–settable
Timer:…………………………. Electronic, 1 to 30….. minutes preset to 10 minutes, (+/– 1{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2})

Current Requirement:…………… 1.9 Amps
Voltage Requirement:………………….. 120 V (+/- 5{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2})
Frequency:……………………. 60 Hz
Weight:…………………….. 18.5 lbs. (8.4kgs)

NOTE: A 230V / 50Hz version is available upon request. Consult your authorized dealer.

Centrifuge Drucker 653ES

Specification

The Horizon Model 653ES, Easy-Spin 12, is a singlespeed centrifuge designed for the clinical laboratory. The scrollable time setting and digital readout make it incredibly easy to use. The compact design minimizes its footprint, leaving more room on your counter. The unique horizontal rotor design allows for the test tubes to be inserted into the centrifuge at a convenient 45 degree angle. They are then gently rotated to a full, horizontal position as the motor accelerates.

Specification

Horizon Model 653ES, Easy-Spin 12 Centrifuge
Nominal Speed (Horizontal)………………………… 3,150 (+/- 150) RPM
Nominal Force (Horizontal)………………………… 1,500 (+/- 90) xg
Max Acceleration Time……………………… 60 seconds
Deceleration Time (with brake engaged)………………………. 50 seconds
Deceleration Time (with brake disengaged)……………………. 120 seconds
Maximum Capacity……………………… Horizontal 120mL (12x10mL)
Overall Height………………………. 9 in. (23 cm)
Dimensions: Width……………………… 12.5 in. (32 cm)
Depth………………………. 15 in. (38 cm)
Weight………………………. 23 lbs. (10.5 kg)
Centrifuge Motor………………………… 1/30 H.P. AC
Protection Breaker…………………….. 4 Amp. Re–settable
Timer………………………. Electronic w/display, 1 to 99 minutes +/- 1{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}
Max. Power Requirements………………………. 165 Watts
Voltage…………………… 115 (+/- 10) Volts
Frequency…………………….. 60 Hz

NOTE: A 220/230V 50Hz version is available. Consult your authorized dealer.

Centrifuge Drucker 653V

General Overview

The Horizon Model 653V, Easy-Spin 12V, gives you all of the advantages of the Horizon product line – easy loading, horizontal separation and small size. The brushless DC motor provides extremely smooth operation and precise speed control. Select from several rotor options to suit your needs.

Specification

General Specifications for the Horizon, Model 653V Centrifuge
Overall Height…………….. 8.5 in. (23 cm)
Dimensions: Width…………….. 12.5 in. (32 cm)
Depth…………….. 14.8 in. (36 cm)
Max Acceleration Time…………….. 15 seconds
Max Deceleration Time…………….. 15 seconds
Weight…………….. 27 lbs. (12.3 kg)
Centrifuge Motor…………….. 1/2H.P. Brushless DC
Protection Breaker…………….. 4 Amp. Re–settable
Timer…………….. Electronic, 1 to 30 minutes +/- 1{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}
Max. Power Requirements…………….. 200 Watts
Voltage: 115 (+/- 10) Volts Frequency: 50/60 Hz

NOTE: A 220/230V version is available. Consult your authorized dealer.

General Overview

The Horizon mini-VES, model 642VES, is a variable-speed centrifuge designed for the doctor’s office or small lab. The scrollable

time setting and digital readout make it incredibly easy to use. Its compact design minimizes its footprint, leaving more room on

your counter. The unique horizontal rotor design allows for the test tubes to be inserted into the centrifuge at a convenient 45

degree angle. They are then gently rotated to a full horizontal position as the motor accelerates.

Variable Speed!
Digital time display w/ scrollable time setting
Electronic braking
Compact design uses less than 1 sq. ft. of counter space
Full horizontal separation for test tubes up to 10mL
Digital Cycle counter to monitor machine usage
Horizontal Rotor comes standard
Push-button operation/Safety lid-lock
ETL Compliant to ANSI/UL Standards
Also spins tubes up to 15ml with fixed angle rotor (optional)

Specification

Speed Range: (Horizontal) 1000 to 3,200 RPM (+/- 10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2})
Speed Range: (Fixed Angle) 1000 to 3,900 RPM (+/- 10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2})
Force Range: 140 to 1430 xg (+/- 10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2})

Max Acceleration Time……….. 60 seconds
Deceleration Time (brake engaged)……….. 10 seconds
Deceleration Time (brake disengaged)……….. 60 seconds
Maximum Capacity……….. (Horizontal) 60mL (6x10mL)
Maximum Capacity……….. (Fixed Angle) 90ml (6x15ml)
Overall Height……….. 8.5 in. (22 cm)
Width……….. 11 in. (28 cm)
Depth……….. 12.5 in. (32 cm)
Weight……….. 18.5 lbs. (8.4 kg)
Centrifuge Motor……….. 1/30 H.P. AC
Protection Breaker: 4 Amp. Re–settable

Timer……… Electronic w/display, 1 to 99 minutes +/- 1{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}

Max. Power Requirements……….. 165 Watts

Voltage……….. 115 (+/- 10) Volts

Frequency: 60 Hz

Vairable Speed Centrifuge Drucker 755

General Overview

Large Capacity- up to twenty-four (24) 10mL Test Tubes,

twelve (12) 15mL Test Tubes, or six (6) 50mL tubes

Brushless-DC Motor
Full Horizontal Separation for Best Results
Automatic Braking Reduces Cycle Time
Precise Variable Speed Control (model 755V)
Audible End-of-Run Indicator
Push-Button Operation/Safety Lid-Lock
ETL Compliant to ANSI/UL Standards
Cycle Counter to Monitor Machine Usage

Specification

General Specifications for the Horizon Elite, Model 755 Centrifuge
Overall Height………….. 9.0 in. (23 cm)
Dimensions………….. Width: 14.5 in. (37 cm)
Depth………….. 17 in. (43 cm)
Max Acceleration Time………….. 15 seconds
Max Deceleration Time………….. 15 seconds
Weight………….. 39 lbs. (17.7 kg)
Centrifuge Motor………….. 1/30 H.P. AC
Protection Breaker………….. 4 Amp. Re–settable
Timer………….. Electronic, 1 to 30 minutes +/- 1{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}

Max. Power Requirements…………… 200 Watts

Voltage…………… 115/230 (+/-10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}) Volts

Frequency…………… 50/60 Hz

Vairable Speed Centrifuge Drucker 755V

General Overview

The Horizon Elite, model 755, truly delivers. Its brushless DC motor provides for extremely smooth operation and precise speed control. Select from several rotor options to suit your needs, (see reverse) and choose either single-speed or variable.

Specification

General Specifications for the Horizon Elite, Model 755 Centrifuge
Overall Height…………… 9.0 in. (23 cm)
Width…………… 14.5 in. (37 cm)
Depth…………… 17 in. (43 cm)
Max Acceleration Time…………… 15 seconds
Max Deceleration Time…………… 15 seconds
Weight…………… 39 lbs. (17.7 kg)
Centrifuge Motor: 1/30 H.P. AC
Protection Breaker: 4 Amp. Re–settable
Timer: Electronic, 1 to 30 minutes +/- 1{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}

Max. Power Requirements: 200 Watts

Voltage: 115/230 (+/-10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}) Volts

Frequency: 50/60 Hz

Vairable Speed Centrifuge Drucker 755VES

General Overview

The Model 755VES is supplied with everything necessary for the modern laboratory including a horizontal rotor, buckets, caps, and inserts for

tubes ranging from 1 – 50 mL. The exclusive airflow and rotor design guarantees the highest quality sample separations and maintains the integrity of sensitive samples.

Specification

Electrical

Voltage…………. 115/230 Volts (± 10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2})
Frequency……………………. 50/60 Hz
Max. Power Requirements………… 200 Watts
Protection Breaker……………… 4 Amp. Re–settable
Centrifuge Motor…………….. 1/2 H.P. Brushless DC

General

Overall Dimensions
Height………. 9.0 in. (23 cm)
Width………. 14.5 in. (37 cm)
Depth…….. 17.0 in. (43 cm)
Weight………………. 39 lbs. (17.7 kg)
Min. Acceleration Time…………… 15 seconds
Min. Deceleration Time…………. 15 seconds
Timer………………… Electronic, w/hold or 0 to 99 minutes

Speed Range
Horizontal Rotor………………… 500 to 3,500 RPM
Fixed-Angle……………………….. 500 to 4,000 RPM
Force Range
Horizontal Rotor……………….. 40 to 2,200 xg
Fixed-Angle……………………. 30 to 2,000 xg

General Overview

The 842HS offers control over almost every aspect of the unit’s operation from variable acceleration and deceleration to easy time and speed input. High speed and force capability greatly reduce processing times. The exclusive Drucker Microhematocrit rotor allows for quick and easy sample loading of Microhematocrit and standard microtubes. Save settings in one of 10 memory locations and recall them at the touch of a button.

Note: Includes New Combo Hi Speed rotor

Specification

General specifications for the Drucker 842HS Microhematocrit centrifuge.

Height……………………. 8.0 in. (20 cm)
Width……………………. 11.0 in. (28 cm)
Depth……………………. 13.5 in. (34 cm)
Weight……………………. 27 lbs. (12.25 kg)
Min Acceleration Time……………………. 70 seconds
Min Deceleration Time……………………. 80 seconds
Timer……………………. Electronic, 0-99 minutes
Centrifuge Motor……………………. ½ H.P. Brushless DC
Power Requirements……………………. 200 Watts
Voltage Requirements……………………. 115 / 230 Volts
Frequency Requirements……………………. 50 / 60 Hertz
Protection Breaker……………………. 4 Amp. Re-settable

Centrifuge Drucker 842VES

Note: Available in Performance Plus and Standard

General Overview

The Horizon Model 842VES, Plasmafuge-6, is the most compact of Drucker’s Performance Series centrifuges. The 842VES offers control over almost every aspect of the unit’s operation from variable acceleration and deceleration to easy time and speed input. High speed and force capability produces platelet-poor/free plasma and greatly reduce processing times. The exclusive Drucker horizontal rotor allows for quick and easy sample loading and complete horizontal separation. Save settings in one of 10 memory locations and recall them at the touch of a button.

Specification

General Specifications: Plasmafuge-6, Model 842VES Centrifuge
Overall Height……………………. 8.0 in. (20 cm)
Dimensions: Width……………………. 11.0 in. (28 cm)
Depth……………………. 13.5 in. (34 cm)
Min. Acceleration Time……………………. 15 seconds
Min. Deceleration Time……………………. 15 seconds
Weight……………………. 23 lbs. (10.5 kg)
Centrifuge Motor……………………. 1/2 H.P. Brushless DC
Protection Breaker……………………. 4 Amp. Re–settable
Timer……………………. Electronic, w/hold or 0 to 99 minutes +/- 1{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}
Max. Power Requirements…………… 200 Watts
Voltage…………… 115 / 230 (+/- 10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2}) Volts
Frequency…………… 50/60 Hz

Centrifuge Drucker 853VES

Note: Available in Performance Plus and Standard

General Overview

The Model 853VES is a medium capacity centrifuge with unmatched performance. Its high-performance design can produce Platelet-Poor-

Plasma in as little as 3 minutes, yet it still offers versatility for sensitive urine and fertility samples. The exclusive Drucker rotor and airflow design

assures the highest quality separations every time. Complete digital controls make it easy to adjust settings and the internal memory allows for common settings to be stored for later use.

Specification

Electrical
Voltage……………………..115/230 Volts (± 10{1af44c012f54133982097d78a362ccbb71a33a395401d136203372f5186a40e2})
Frequency……………………………………50/60 Hz
Max. Power Requirements……………..200 Watts
Protection Breaker………………………..4 Amp. Re–settable
Centrifuge Motor………………… 1/2 H.P. Brushless DC

General
Overall Dimensions
Height…… 8.5 in. (23 cm)
Width……. 12.5 in. (32 cm)
Depth……. 15.5 in. (39 cm)
Weight……………………………………….. 30 lbs. (13.7 kg)
Min. Acceleration Time…………………..15 seconds
Max. Deceleration Time…………………22 seconds
Timer……………….. Electronic, w/hold or 0 to 99 minutes

Speed Range
Standard Horiontal Rotor………………500 to 4,000 RPM
Performance Plus Horizontal Rotor……..500 to 5,000 RPM
20 Place Fixed Angle Rotor…………..500 to 4,000 RPM
6 Place Fixed Angle Rotor………………500 to 4,000 RPM

Two-way Wireless Data Logger

General Overview

The RFTCTemp2000A is two-way Wireless thermocouple based temperature data logger with LCD. Transmits up to 2000′ maximum (outdoors unobstructed). Built-in memory also stores data internally. Features a built-in temperature sensor for cold junction compensation (CJC). An external thermocouple probe is required (not included). Accepts J, K, T, E, R, S, B, and N type thermocouples

Specification
